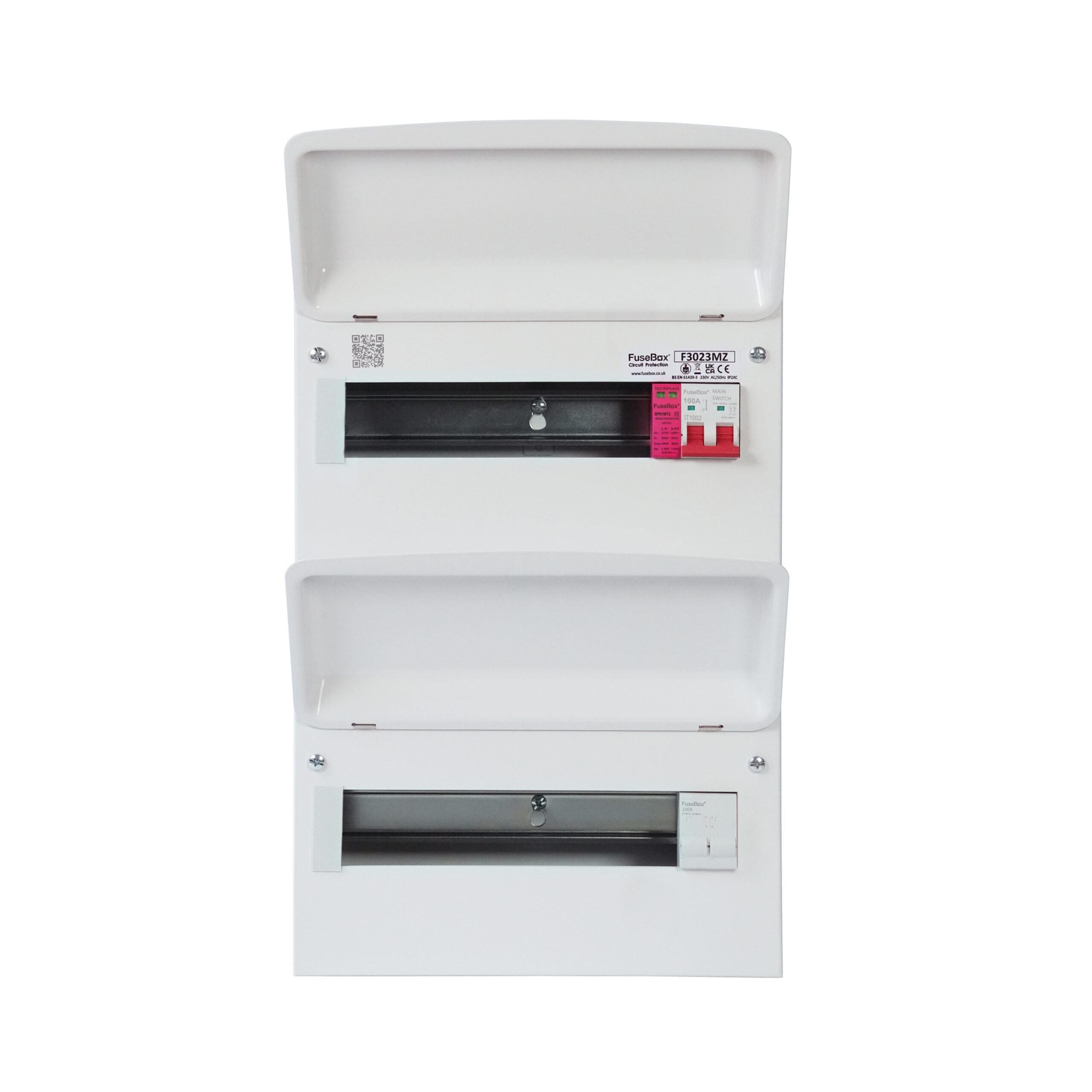

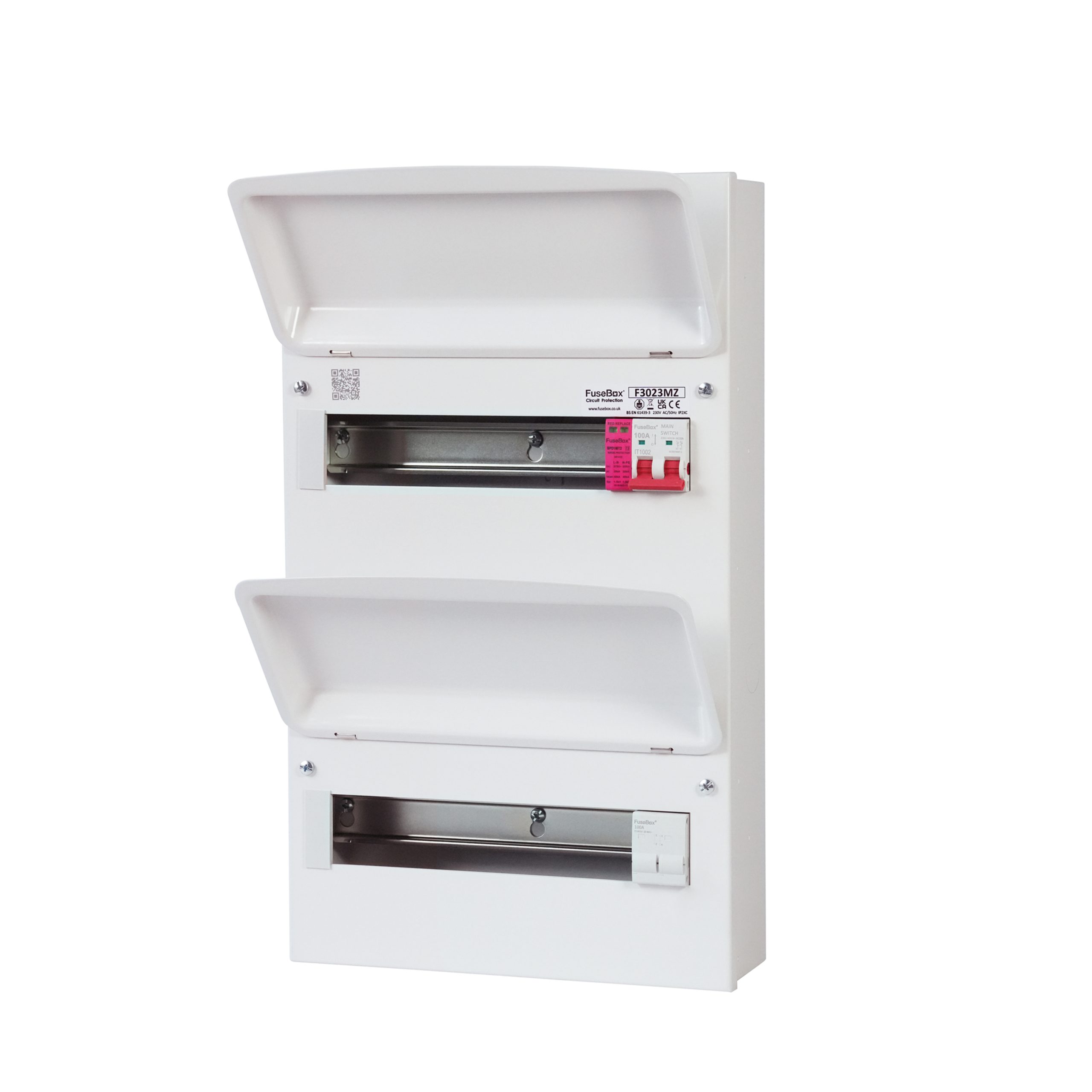

F3023MZ Fusebox 23 Way (11/12 double bank) 100A Main Switch Consumer Unit With SPD
Product Description
The FuseBox F3023MZ consumer unit features 23 usable ways (11/12 double bank) and comes with 100A Main Switch, A Type 2 Surge Protection device
As with all of the fusebox Surge Protected consumer units, the F3023MZ has plenty of space internally for installing both the mini and standard height RCBOs. (See related products below).
Additional features to the Fusebox range are captive screws on the front cover, round knockouts on all four sides along with 2 large rectangular knockouts on the rear.
This consumer unit is supplied with an installation pack which includes a busbar, an icon label pack, and a updated grommet strip.
£130.00 ex vat
CompareKEY FEATURES
- Reinforced grommet strip for enhanced cable protection
- 23 Way SPD main switch consumer unit
- Two extra usable ways for expanded circuit capacity
- Single module Type 2 Surge Protection Device (SPD)
- 100A double bank main switch incomer
- 1mm electro-galvanised steel construction
- RAL 9001 powder-coated finish
- Earth and neutral terminal bars at top
- Removable, raised DIN rail
- Round knock-outs on all faces
- Extra height for RCBOs
- Tail clamp (ACCF) supplied
- Circuit identification labels included
- Captive screws on front cover
- IP20XC rated
- Complies with BS EN61439-3 and 18th Edition
Dimensions: 512mm x 306mm x 113mm (HxWxD)
Based on 0 reviews
Be the first to review “F3023MZ Fusebox 23 Way (11/12 double bank) 100A Main Switch Consumer Unit With SPD”
Related products
- Circuit Protection, Consumer Units

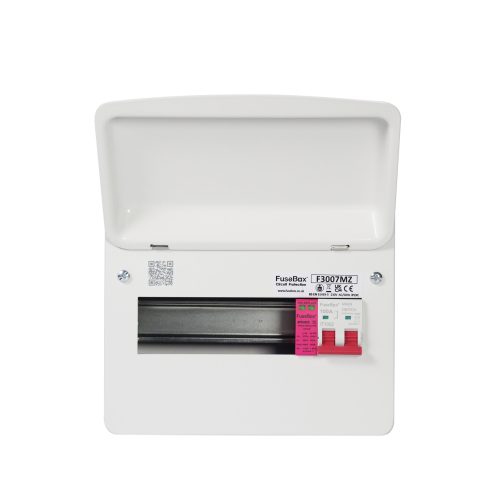

F3007MZ Fusebox 7 Way 100A Main Switch Consumer Unit With SPD
Product Description
The FuseBox F3007MZ consumer unit features 7 usable ways and comes with 100A Main Switch, A Type 2 Surge Protection device
As with all of the fusebox Surge Protected consumer units, the F3007MZ has plenty of space internally for installing both the mini and standard height RCBOs. (See related products below).
Additional features to the Fusebox range are captive screws on the front cover, round knockouts on all four sides along with 2 large rectangular knockouts on the rear.
This consumer unit is supplied with an installation pack which includes a busbar, an icon label pack, and a updated grommet strip.
SKU: n/a - Circuit Protection, RCBO’s

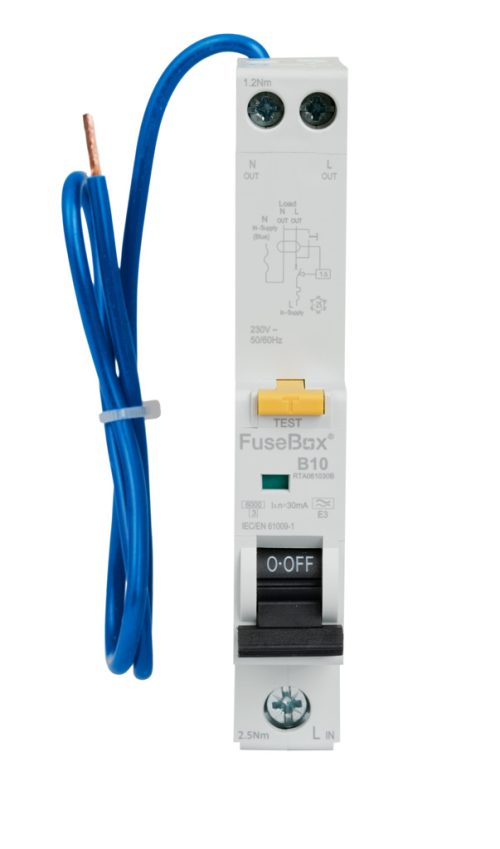

FuseBox RCBO 10amp Type A – B Curve RTA061030B
Overview
The RTA061030B RCBO is designed for use in FuseBox consumer units. These single pole Type A RCBOs respond to both AC and pulsating DC residual currents and protect against both overcurrents due to overload and fault and residual current earth leakage. In either event, the RCBO interrupts the electrical supply to the circuit thus preventing damage to the installation and devices and electric shock to humans.
SKU: n/a - Circuit Protection, RCBO’s

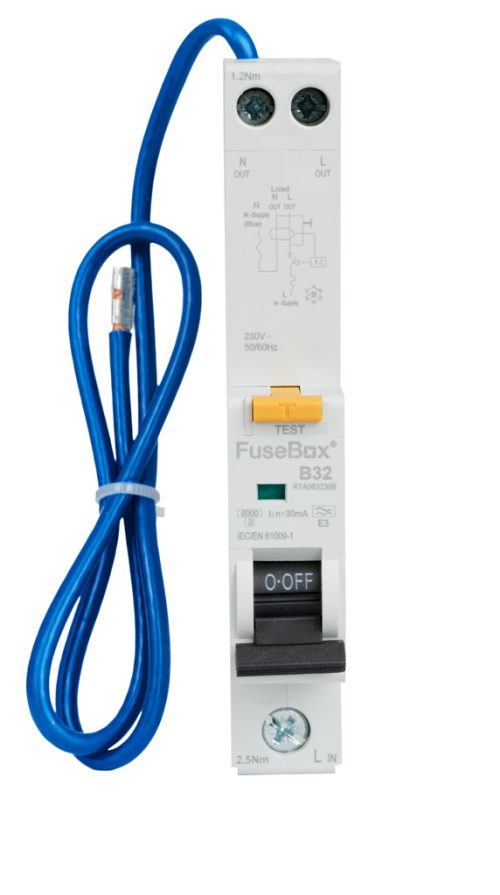

FuseBox RCBO 32amp Type A – B Curve RTA063230B
Overview
The RTA063230B RCBO is designed for use in FuseBox consumer units. These single pole Type A RCBOs respond to both AC and pulsating DC residual currents and protect against both overcurrents due to overload and fault and residual current earth leakage. In either event, the RCBO interrupts the electrical supply to the circuit thus preventing damage to the installation and devices and electric shock to humans.
SKU: n/a - Circuit Protection, RCBO’s

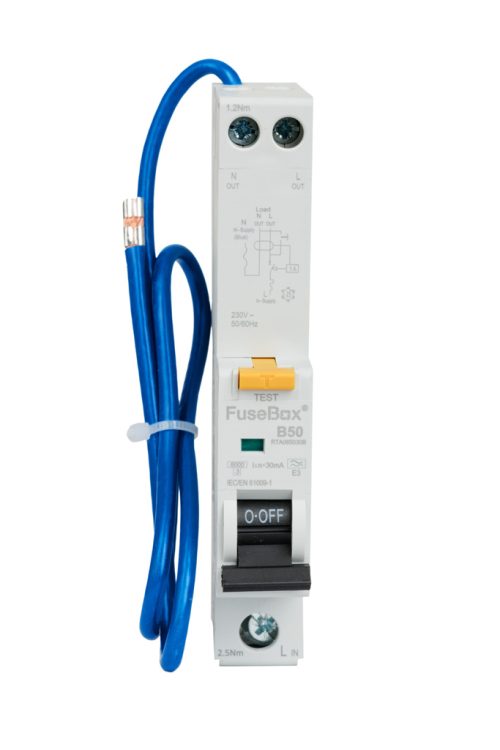

FuseBox RCBO 50amp Type A – B Curve RTA065030B
